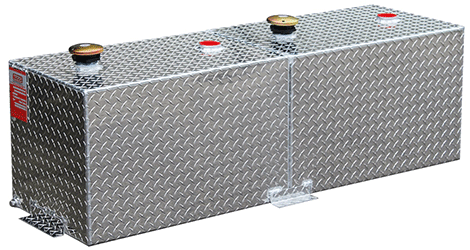

ATI Split Refueling Tank

ATI’s Split Refueling Tanks are built for those who need to safely store and transport two different fuels in a single, legal, and durable solution

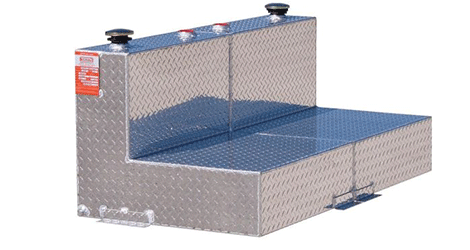

Designed for flatbeds or pickup truck beds, these tanks feature separate compartments to keep liquids fully contained and compliant. Whether you're fueling equipment on a job site or managing operations in the field, these tanks offer versatility with your choice of L-shape or rectangular styles. Each tank is made from heavy-duty diamond plate aluminum, fully baffled to prevent sloshing, and built in the USA to meet DOT, EPA, and VESC-22 standards.

The dual 2” NPT bungs let you configure pump and fill sides exactly how you need them. Available in a range of capacities, these split tanks are a go-to solution for commercial, agricultural, or off-road applications.

Features

• Dual-compartment design for safe, legal transport of two separate fuel types

• Fully welded internal baffles minimize slosh and add structural strength

• Constructed from .125" diamond plate aluminum

• Includes 3/8” NPT drain plug, dual 2” NPT bungs, and vent/prevent cap

• Reversible fill and pump locations

• Meets all DOT, EPA, and VESC-22 fuel transport regulations

• Powder-coated options available (black or white)

• Custom configurations available on request

Package Includes

• ATI Split Refueling Tank

Specifications

• [View Product Catalog here]

• [View Installation Instructions here]

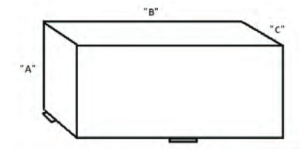

• Mounting Tab Extension: Add 1.5" to the front and rear for mounting clearance

• Cap Height: Add 2.5" to total height

• Fuel Compatibility: Gasoline, Diesel, Kerosene, Methanol, Aviation Fuel

• Finish Options: Raw Aluminum, Black Powder Coat, White Powder Coat

• Regulatory Compliance: DOT, EPA, VESC-22 Approved
