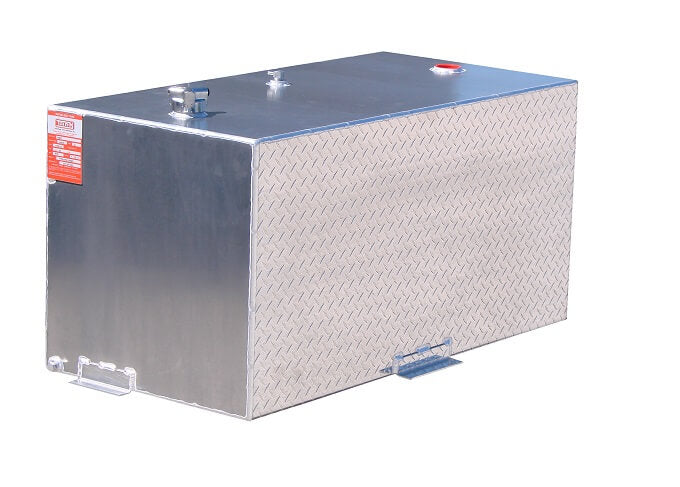

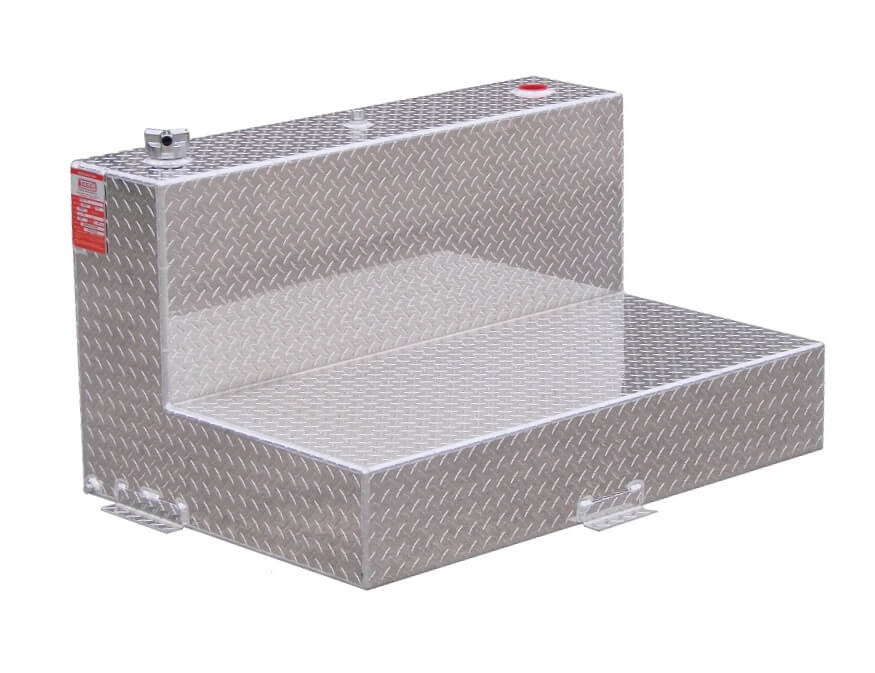

ATI Severe Series Refueling Tanks

ATI’s Severe Series Refueling Tanks are built for the harshest environments, where standard tanks simply won’t hold up

Designed for off-road conditions and heavy-duty use, these tanks are constructed from .190" thick HD aluminum—50% thicker than standard models—and reinforced with fully welded internal baffles to control fuel movement. They’re engineered to handle larger pumps and rugged terrain with ease. With rollover-protected venting, a lockable SpinSecure cap, and pump-ready dual 2" bungs, these tanks are as functional as they are tough.

DOT-certified for transport with the pump attached, and approved for gasoline, diesel, aviation fuel, methanol, and kerosene, the Severe Series is built for real-world field use with full legal compliance.

Features

• Constructed from heavy-duty .190" aluminum for extreme durability

• Internal pump bung support and welded baffles reduce slosh and add strength

• Lockable SpinSecure vent/prevent cap with rollover protection

• Dual 2” NPT bungs allow pump installation on either side

• DOT-certified for legal transport with pump attached

• Compatible with gasoline, diesel, methanol, aviation fuel, and kerosene

• 5-year manufacturer warranty

• Made in the USA for commercial-grade reliability

Package Includes

• ATI Severe Series Refueling Tanks

Specifications

• [View Product Catalog here]

• [View Installation Instructions here]

• Mounting Tabs: Extend 1.5" beyond base

• Cap Height Clearance: Add 2.5"

• Material: .190" HD Diamond Plate Aluminum (Fully Baffled)

• Compliance: DOT Certified, EPA, VESC-22

• Included Hardware: 3/8" NPT drain plug, SpinSecure vent cap, 2x 2” NPT bungs

• Finish Options: Raw Aluminum, Black Powder Coat, White Powder Coat

• Warranty: 5-Year Manufacturer Warranty

• Custom Options: Available upon request
