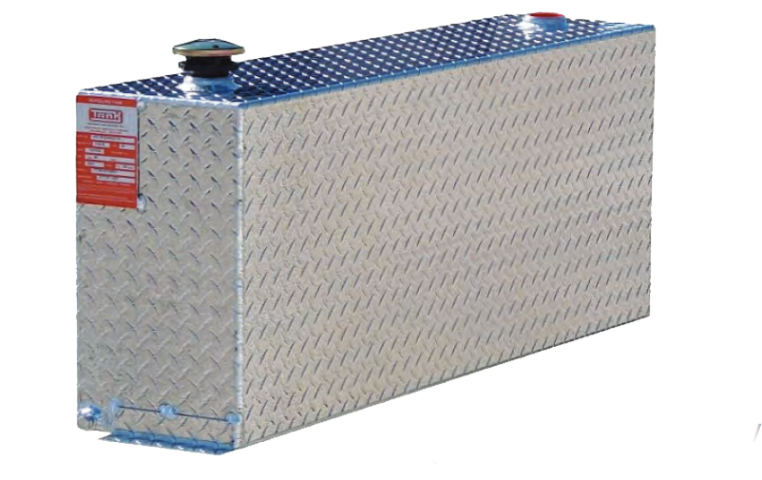

ATI Rectangle Refueling Transfer Tank

ATI’s Rectangle Refueling Transfer Tanks are a reliable and legal solution for safely transporting fuel in your truck bed or flatbed

Built from rugged diamond plate aluminum, each tank is fully baffled to prevent fuel slosh and reinforced to handle daily use across commercial, agricultural, or personal settings. The rectangular design is ATI’s most popular, offering a smart balance between fuel capacity and bed space. With two 2” NPT bungs, you can position your fill cap and transfer pump on whichever side works best for your setup. Tanks range from 38 to 110 gallons, with slimmer options available for tighter installs.

All tanks are made in the USA and meet DOT, EPA, and VESC-22 standards for legal transport of gasoline, diesel, kerosene, methanol, and aviation fuel.

Features

• Rectangular design offers space-efficient fuel transport

• Constructed from .125" diamond plate aluminum

• Fully baffled to reduce slosh and enhance structural integrity

• Dual 2” NPT bungs allow pump and fill cap reversal

• Standard with 3/8” NPT drain plug and vent/prevent cap

• Meets all DOT, EPA, and VESC-22 fuel handling regulations

• Available in raw aluminum or black/white powder coat finishes

• Custom builds available on request

Package Includes

• ATI Rectangle Refueling Transfer Tank

Specifications

• [View Product Catalog here]

• [View Installation Instructions here]

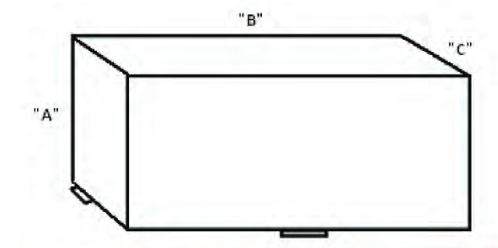

• Mounting Tab Clearance: Add 1.5" to front and rear

• Cap Height Clearance: Add 2.5" to total height

• Fuel Types: Gasoline, Diesel, Kerosene, Methanol, Aviation Fuel

• Finish Options: Raw, Black Powder Coat, White Powder Coat

• Compliance: DOT, EPA, VESC-22 Approved

• Custom Options: Available on request
