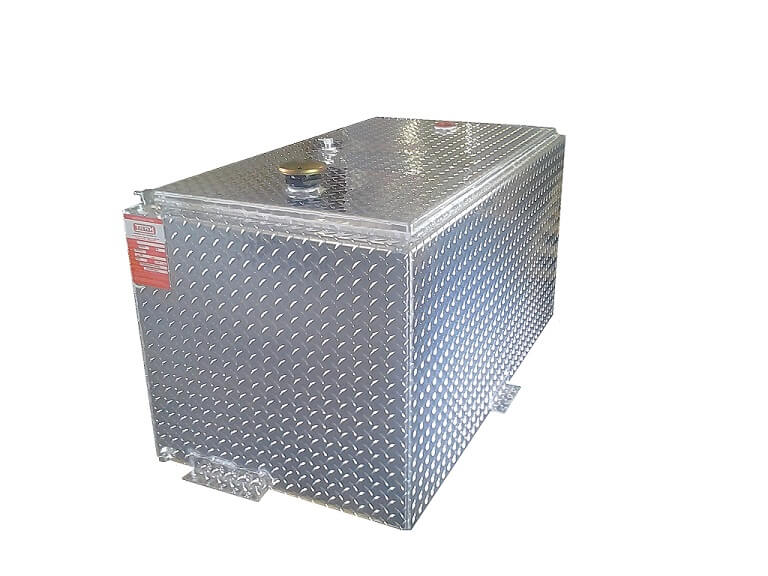

ATI Double Wall Refueling Tank

The ATI Double Wall Rectangle Refueling Tanks offer a rugged, fully compliant solution for safely storing and transporting fuel in demanding environments

Designed for those who require extra containment protection, these tanks feature an inner and outer wall system that meets all 50-state regulations for gasoline, diesel, methanol, kerosene, and aviation fuel. Constructed from heavy-duty diamond plate aluminum and fully baffled to prevent slosh, these tanks are engineered for stability, durability, and legal transport.

With two 2" bungs for reversible pump and fill cap configuration, these tanks are ideal for agricultural, municipal, fleet, or industrial applications. Available in 98 and 110 gallon sizes



Features

• Double wall design for added safety and environmental containment

• Legal in all 50 states for multiple fuel types

• Constructed from .125" diamond plate aluminum

• Fully baffled interior reduces slosh and strengthens structure

• Dual 2" NPT bungs for customizable pump/fill locations

• Includes vent/prevent cap and 3/8" NPT drain plug

• Available in raw aluminum or optional black/white powder coat

• Built in the USA to industrial-grade standards



Package Includes

• ATI Double Wall Refueling Tank



Specifications

• [View Product Catalog here]

• [View Installation Instructions here]

•

• Material: .125" Diamond Plate Aluminum (Double Wall)

• Fuel Types: Gasoline, Diesel, Methanol, Kerosene, Aviation Fuel

• Finish Options: Raw Aluminum, Black Powder Coat, White Powder Coat

• Regulatory Compliance: DOT, EPA, and VESC-22 Certified

• Included Hardware: 2x 2” NPT bungs, vent/prevent cap, 3/8” NPT drain plug

• Custom Options: Available upon request



Model	Capacity	Dimensions (A x B x C) (inches)
TTR98DW	98 Gallons	25" x 48.5" x 26"
TTR110DW	110 Gallons	25" x 53" x 26"
