ATTA 45 Gallon Roll-Top Bedcover Auxiliary Diesel Tank AT45LRT

ATTA 45 Gallon Roll-Top Bedcover Auxiliary Diesel Tank AT45LRT

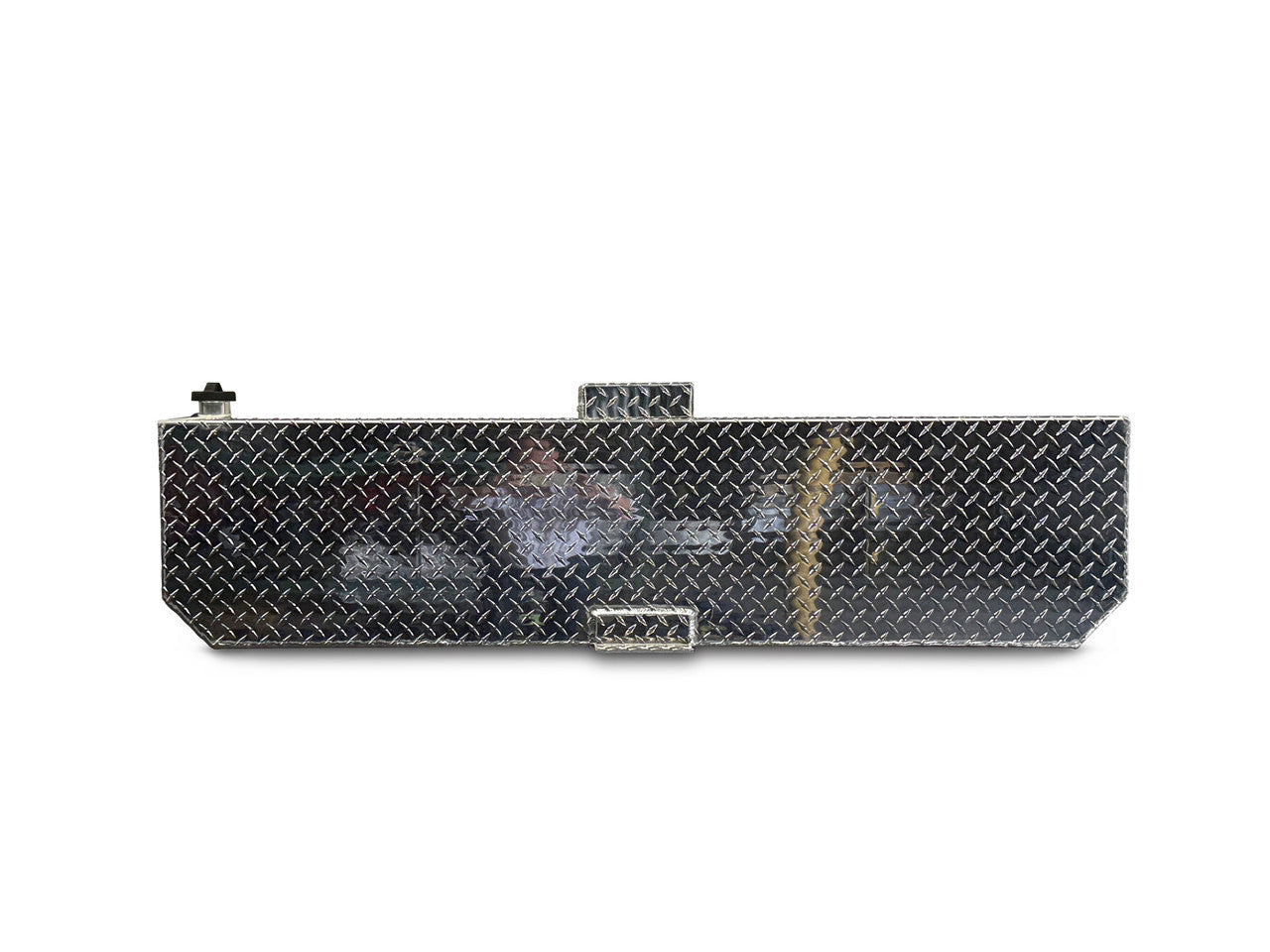

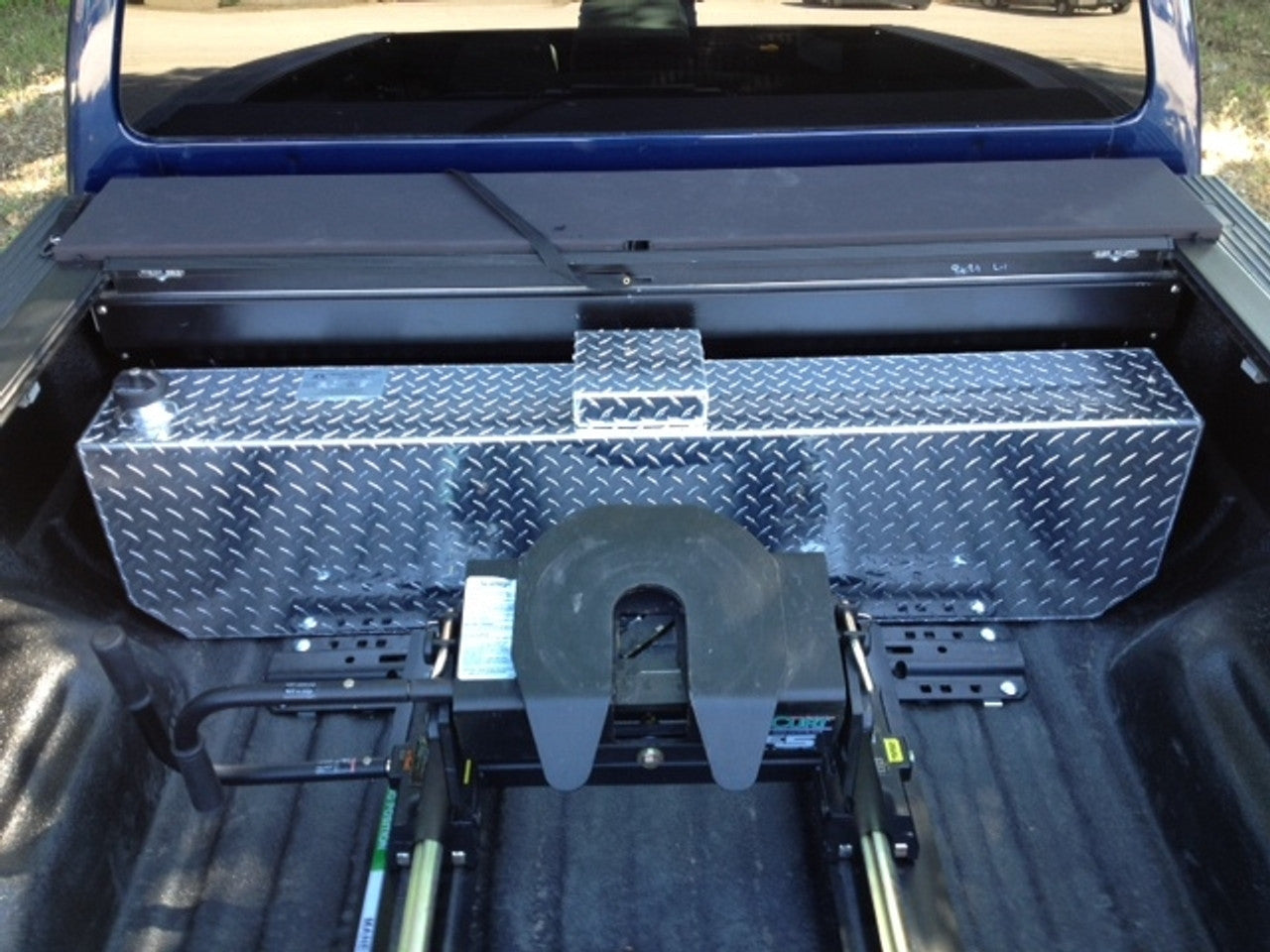

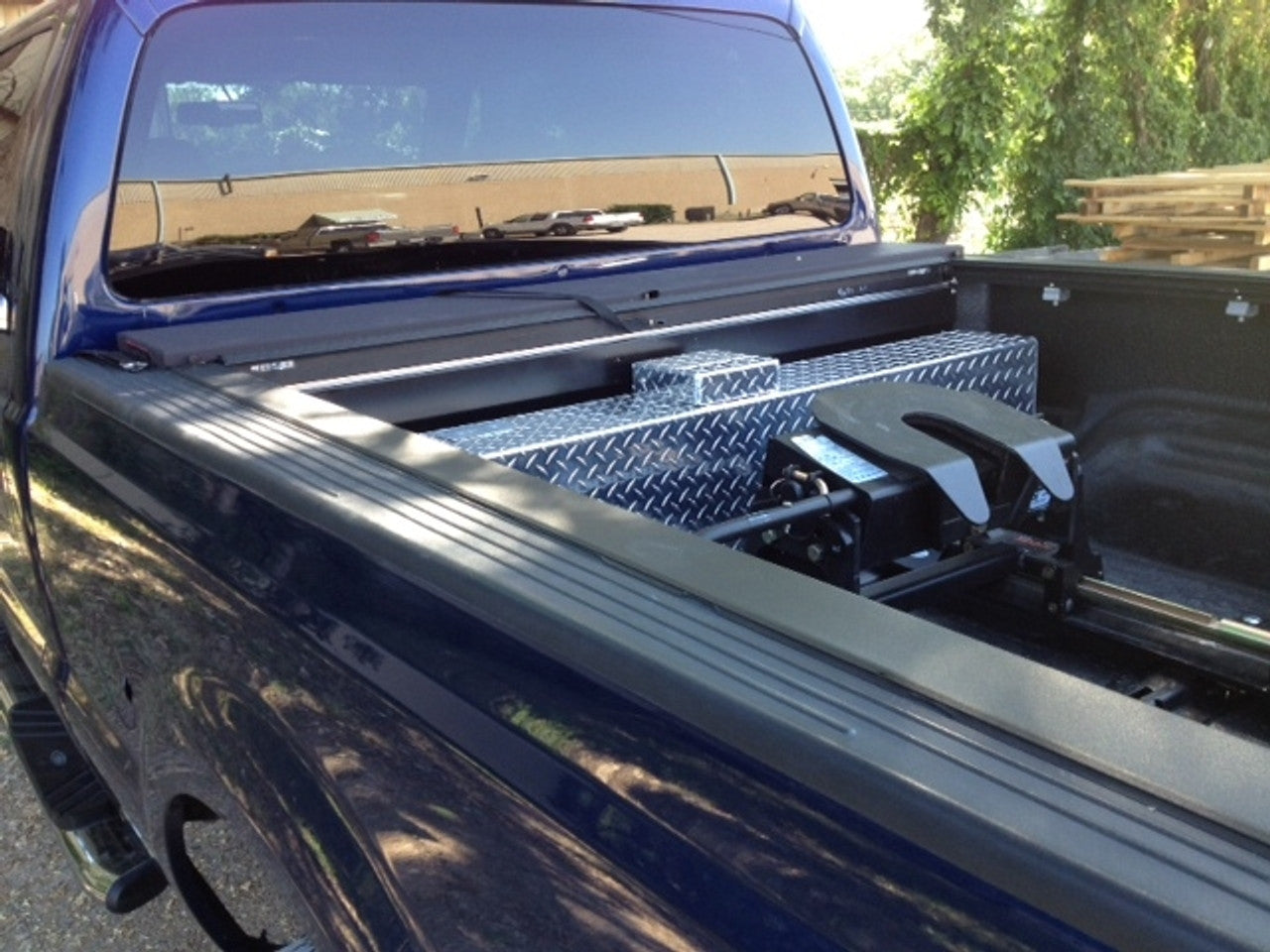

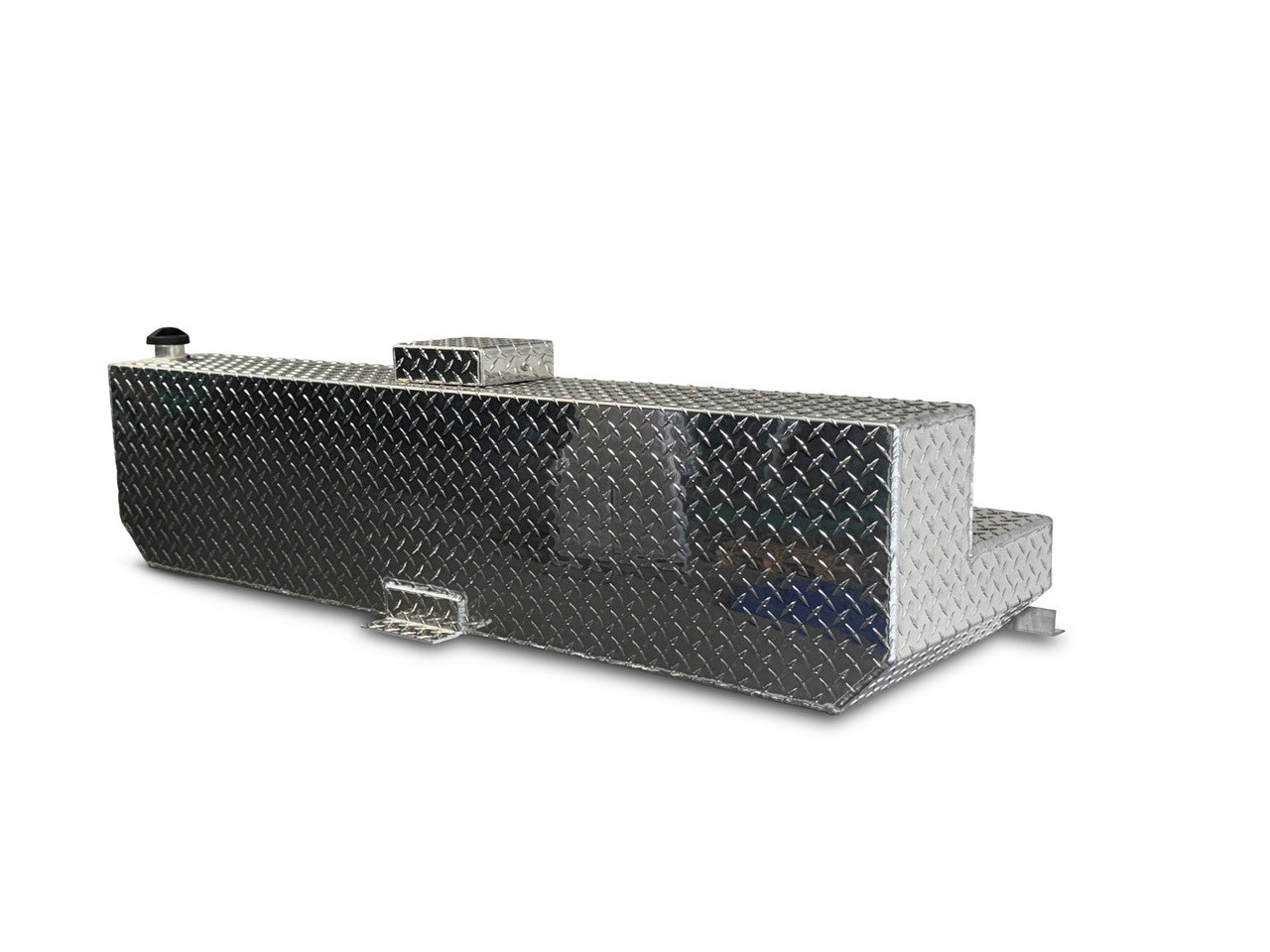

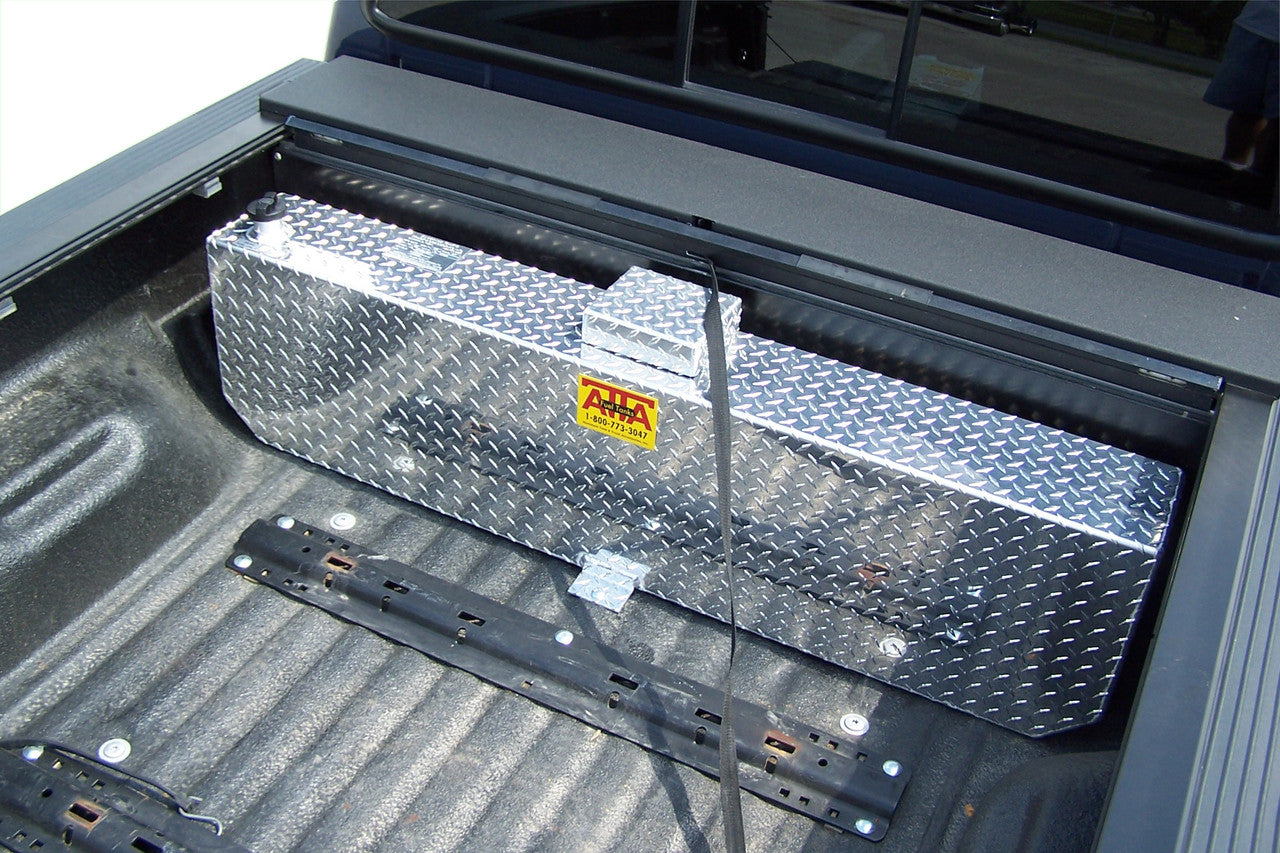

The AT45LRT from ATTA is a 45-gallon reverse auxiliary L-tank engineered for trucks equipped with Retrax or Roll’N’Lock canister-style bed covers.

 Its low-profile “L” shape allows the bottom portion of the tank to slide neatly beneath the canister, preserving both function and space. Built from .125 gauge aluminum with reinforced 3/16” tailgate-side hold-down tabs, this tank is designed for strength and stability. It won’t interfere with your bed cover’s drain system and comes standard with a locking fuel cap.

Ideal for long or short bed setups—just note that short bed Dodge trucks may require a notched version for proper fit.

Features

• Bed Cover Friendly Design
  Fits cleanly under canister-style bed covers without blocking drain hoses or access.



• Low-Profile “L” Shape
  A 7” tall lower section slides beneath the canister for a seamless fit and full bed use.



• Heavy-Duty Construction
  Made from .125 gauge aluminum with 3/16” hold-down tabs for long-term durability.

Package Includes

• ATTA 45 Gallon Roll-Top Bedcover Auxiliary Diesel Tank AT45LRT

Specifications

• Capacity: 45 gallons

• Material: .125 gauge aluminum, fully baffled

• Dimensions: 14" H x 18" W x 60" L (Lower “L” section is 7" tall x 10" wide)

• Fill Neck: Single, driver’s side

• Fuel Type: Diesel only

• Bed Type: Short or long bed (Dodge short beds may require notching)

• Notes:

  • Add 2.5" to height for fill neck/cap and sending unit cover

  • Add 1.5" (front & rear) to width for hold-down tabs

For more information on both of these auxiliary tank connection systems click HERE.
